Windows AWS 65/70/75 ALU-Antic Oak (HVHZ)
High-quality aluminium system with comprehensive range of solutions (Aluminium Outswing Casementand Fixed Window, Windows, Casement).

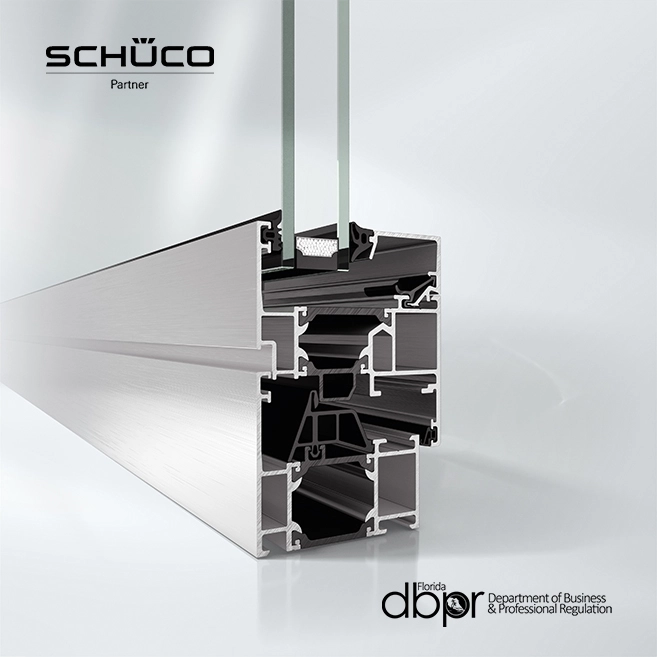

As part of the Schüco AWS system platform, the thermally insulated window system offers an extensive range of solutions for the 65 mm basic depth to meet a variety of building envelope requirements. It is based on the functional, energy-efficiency and design properties of the aluminium construction: perfectly tailored components combine benefits such as good thermal insulation, narrow face widths and concealed, standard manual or electromechanical fittings for inward and outward-opening windows.
The high level of flexibility of the system enables a wide variety of uses as a punched opening, ribbon window or façade insert unit, as well as in combination with Schüco door systems. An additional benefit for architects and specifiers is the wide range of opening types such as side-hung and turn/tilt vents, bottom-hung toplights or barrier-free window doors. An outward-opening window design with centre gasket is also available as a double-vent window with burglar resistance in accordance with test procedure PAS 24.
A wide range of profiles is available within the system platform, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, as well as a number of design variations and additional combination options, such as with Schüco sun shading and ventilation systems.
Schüco AWS 65/70/75 thereby sets standards in terms of planning flexibility and offers attractive window solutions for ambitious architecture.
Benefits:
- Standard aluminium window system for international requirements in basic depth of 65 mm/70 mm/75 mm
- Wide range of profiles including the Schüco AWS 65 RL (Residential Line) system and vent profiles for Schüco TipTronic SimplySmart e.g. for side-hung, turn/tilt and double-vent solutions as barrier-free patio and balcony doors, or with insert outer frames including adapter gasket to compensate for different glass thicknesses for integration in Schüco mullion/transom façades.
- Combination with the concealed Schüco AvanTec SimplySmart system fitting allows for large vent weights and an opening angle of 180°
- Burglar resistance in accordance with DIN EN 1627
- Can also be designed as an outward-opening window with centre gasket, as a double-vent window and with burglar resistance in accordance with test procedure PAS 24

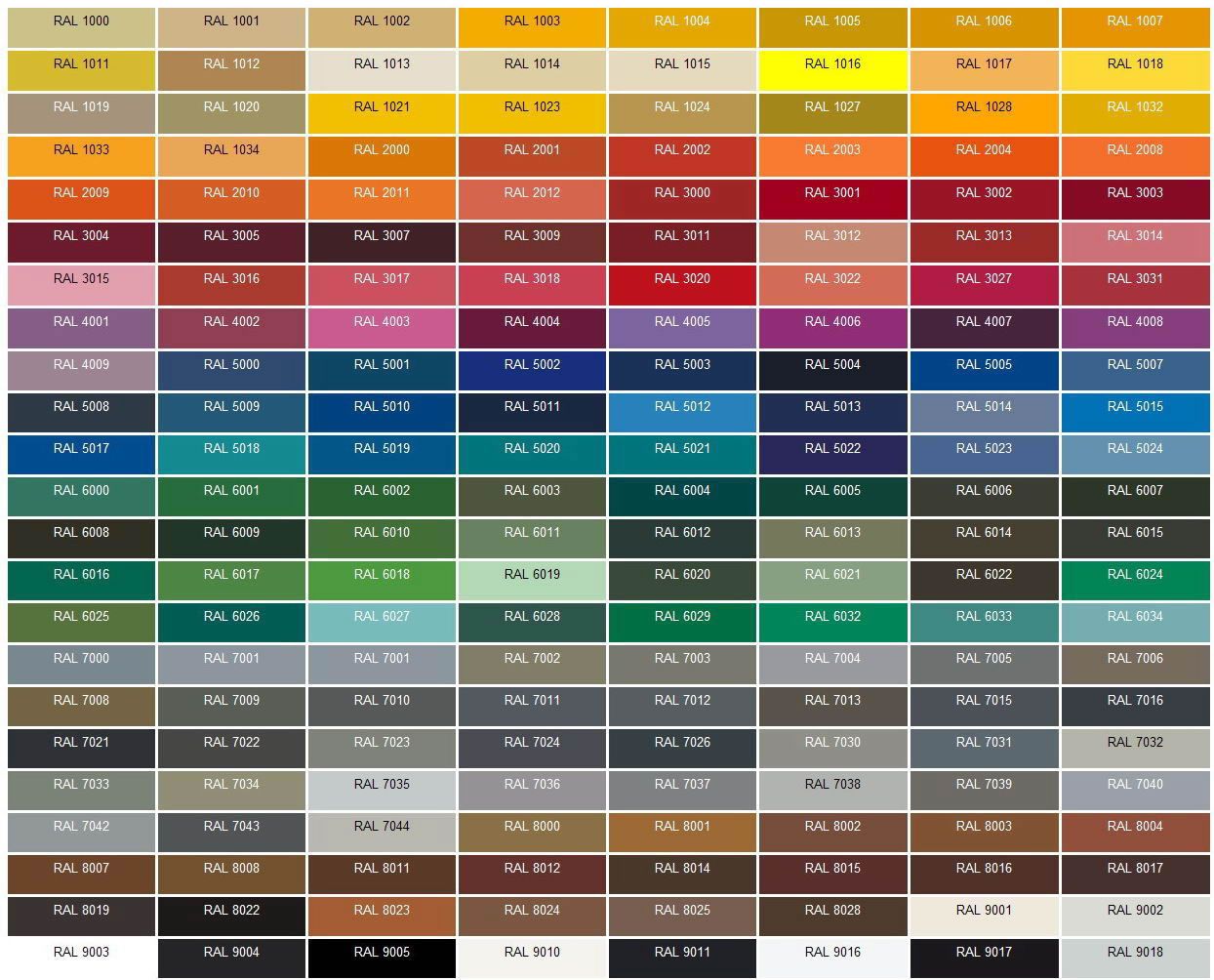

Colors

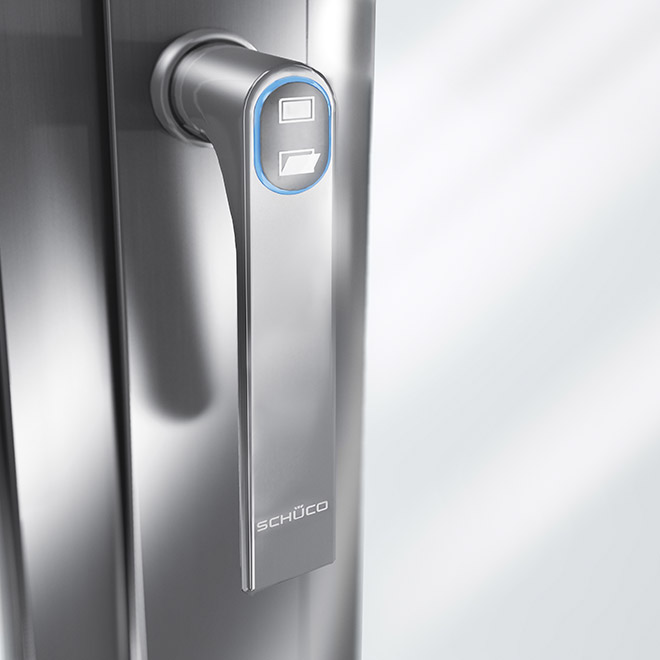

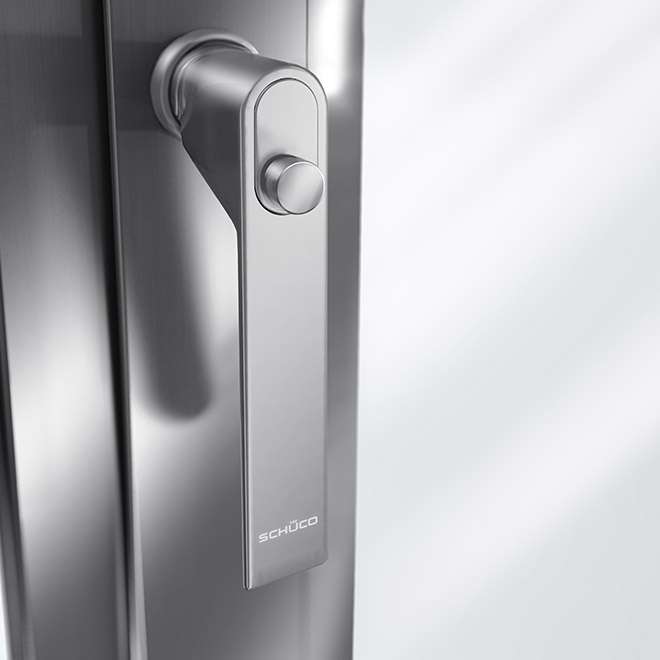

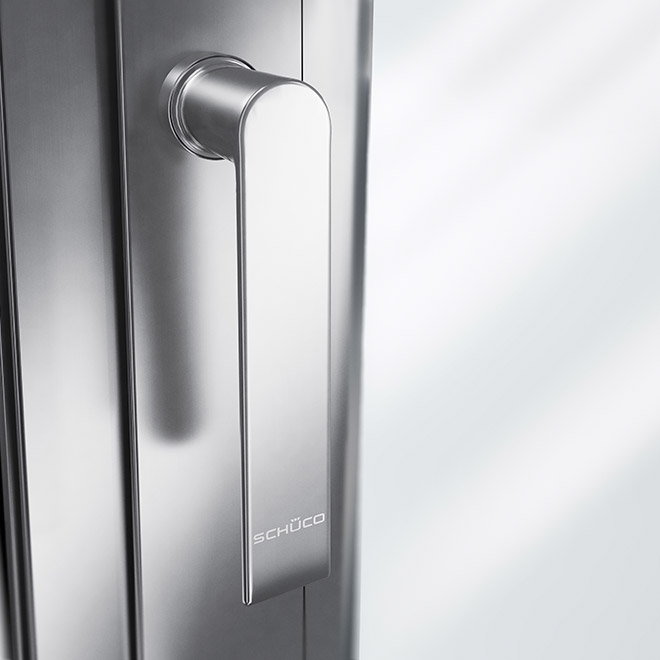

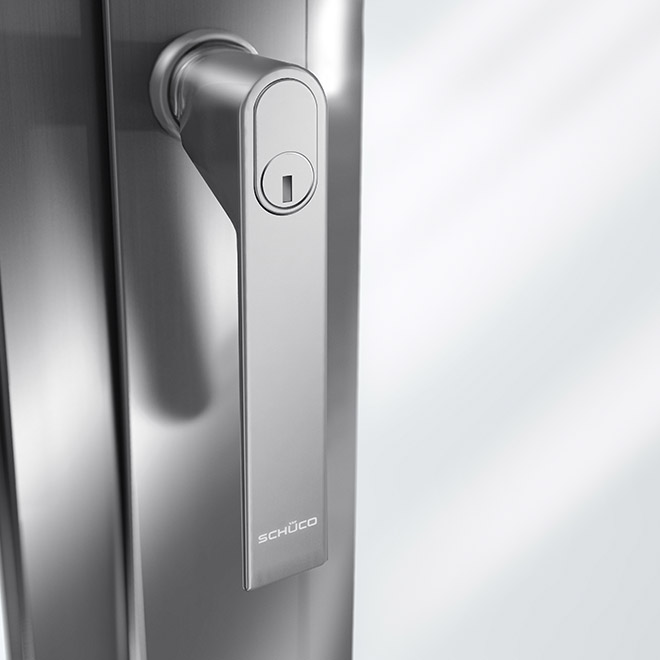

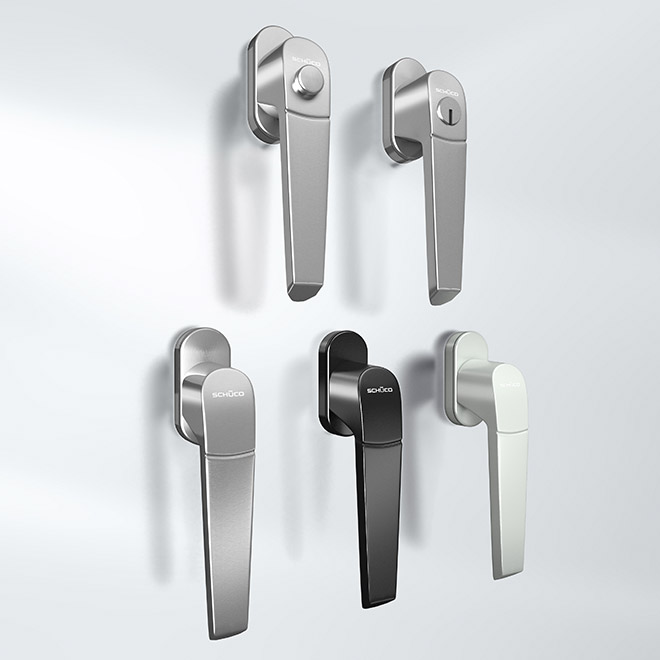

Fittings
With activPilot Concept, a fitting system has been created, which sets itself apart on the market with its special design and impresses with functionality and operating comfort. The intelligent, clearly-structured modular activPilot system offers window builders significantly improved processing efficiency, in particular due to the drastically reduced number of components. With its future-orientated design, activPilot also sets itself apart visually on the market with its special design and shines with an innovative external appearance.
The new locking system, the option of an easy security technology upgrade and a range of other attractive additional functions are just some of the arguments in favour of the activPilot fitting system, which leaves planners lots of room for the design and implementation.
The fully concealed turn-tilt fitting system
With activPilot Select, Winkhaus offers a fully concealed turn-tilt fitting, which means that the visual advantage of invisibility can also be achieved for heavy windows and doors up to 150 kg. A fitting system that is easy to install thanks to its intelligent modular construction, and that can be modified to reflect changing requirements at any stage.
Innovative technology that adds hidden strength:
activPilot Select opens up a new world of opportunities to window and building component manufacturers. Sashes weighing up to 150 kg with a surface area of 3 m² are easy to handle with this innovative turn-tilt fitting. activPilot Select therefore fulfils modern architectural requirements in new buildings and restoration work, also with regard to energy efficiency. Now, large-surface triple glazing is no problem. The standard activPilot Select model will bear up to 100 kg. It is also possible to increase the load bearing capacity from 100 kg to max. 150 kg at a later stage. Two easily retrofittable add-on components are all you need.
Flexible configuration – fast installation
activPilot Select’s user-friendly design offers window builders vastly simplified and accelerated installation and adjustment of the fittings with no special tools. No need for special drilling or complicated milling when producing windows. Locking points can be moved right into the corners – for more stability and safety. Depending on the sash weight, sashes can be fitted by a single qualified employee.
The window fitting system with parallel action
Compared with conventional turn and tilt windows, the activPilot Comfort PADK offers another opening dimension in addition to the “turn” and “tilt” opening positions: “parallel action”. The sash is disconnected parallel to the frame. This creates an approx. 6 mm wide air gap, which guarantees a natural and safe ventilation in any weather. We intentionally took a different path in the development of the activPilot Comfort PADK fitting. The Tilt-First operating sequence has the advantage that the fitting is extremely smooth-running and enables high production tolerances. The operating sequence, which is coming more widely accepted on the market, offers additional security and is frequently used in nurseries, single homes, apartment blocks and residential homes for the elderly.
The special feature here is the dual function of the crosswise handle position: If the handle is moved to the crosswise position from below, the fitting is in the tilt position. If the handle is turned another 90° to the 180° position, the sash is in parallel action position. If the handle is turned back to the 90° position, the window sash can be moved to the turn position.
To close the window, the handle must be turned downwards to the initial position. A further benefit is that the activPilot Concept modular system can also be used for activPilot Comfort PADK.
The natural air exchange in parallel action is proven to create a healthy indoor climate. The special feature: This position offers the same protection from burglary as in the close state – burglary-resistance according to DIN EN 1627 – 1630 up to resistance class RC 2 is possible. The innovation: burglary-resistant ventilation!
